These beds are manufactured out of 3/16 aluminum plate with a full steel
subframe which includes a recessed 30,000LB. capacity goosneck hitch and class
III pull hitch(class IV optional) all steel parts are powdercoated for long
lasting corrosion resistance. LED lights are standard, and beds come with a
factory-type wire harness installed for easy installation to your truck.
standard beds for single tire longbox trucks come a full 8 1/2' long and 7' wide
with fold-down 7" siderails for extra width capacity, while dually beds are 8'
wide, and the 7" siderails flip down for access to the stake pockets. shortbox
truck beds are 7' wide and 7' long, and also includes side rails and stake
pockets.

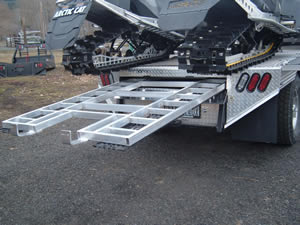

These beds are the only true "toy friendly" beds as they come standard with a 8
1/2 ' by 49" ramp stowed underneath, which slides out the back for easy loading
of your quads, sleds, bikes, whatever. also includes are multiple tie downs and
wheel chocks/tiedowns for bikes on the headache rack.

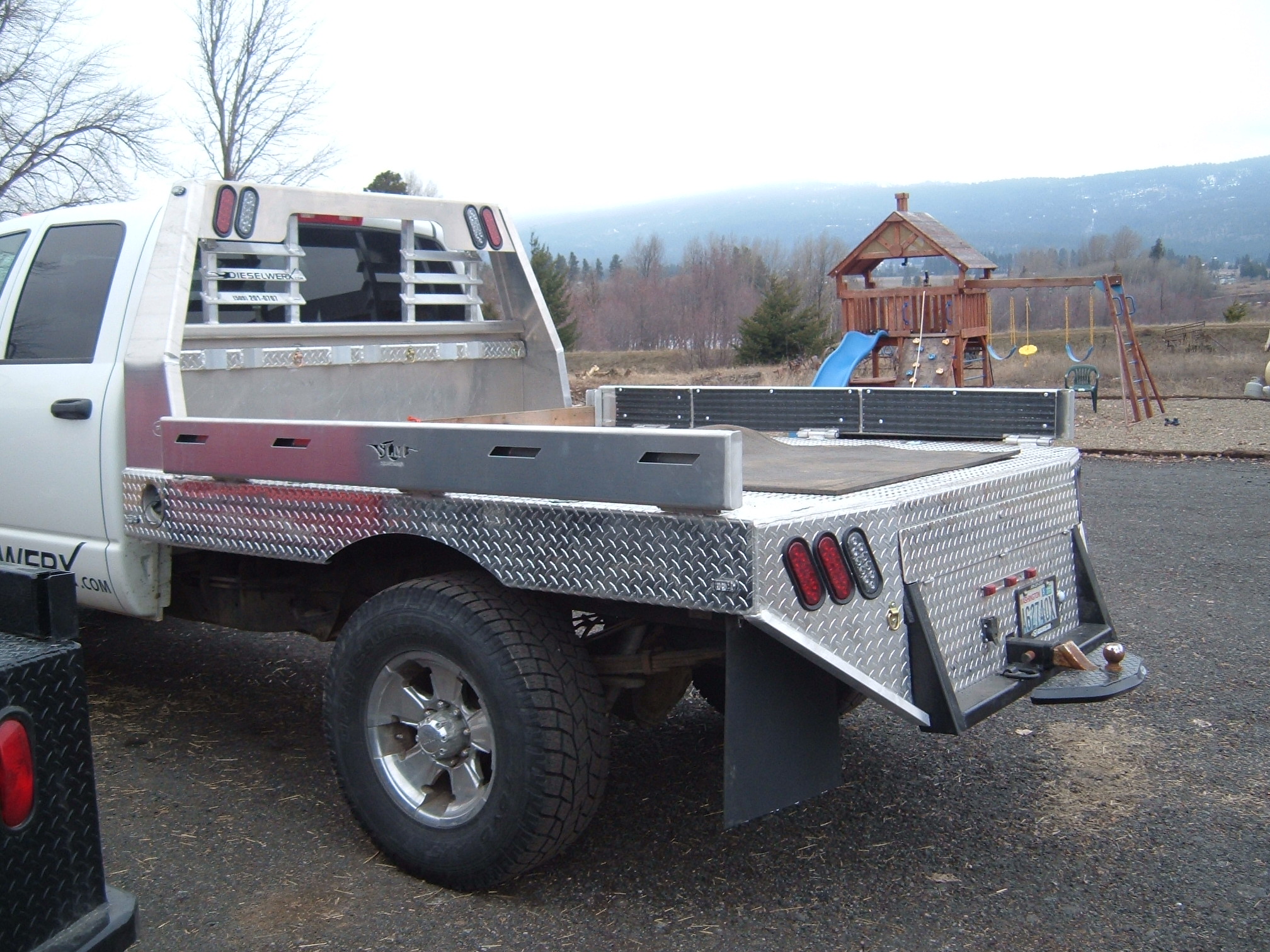

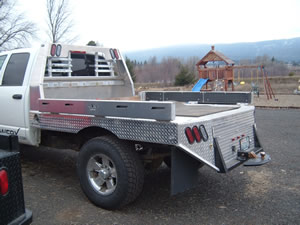

(click to enlarge)
|
If you use your truck for a truck, then you'll appreciate all the standard features on a Bradford Built truck bed; things like 1/8" thick tread plate floor, a 30,000 lb rated gooseneck hitch and the incredibly strong receiver type bumper hitch. With the 6" tall flip-up side rails, you won't be back-tracking looking for your chains or spare tire. Chain "keyholes" in the headache rack, flush-mounted D-rings in the side rails, and stake pockets in the deck make it easy to secure any load. The sealed beam lights are flush mounted and there is a 7-pole plug-in for your trailer. The rear corners of the deck are tapered so backing up a little too close to the dock won't take out the lights. The forward taper also allows for locating the gooseneck ball further forward while still clearing your trailer gussets in a turn. The powder coat paint gives it a good shine and easy to wash surface.
|
|
Bradford Built Work Beds
Standard features include:
- POWDER COATED BLACK for a good shine and an easy-to-wash surface.
- 6" Flip-Down Sides on Greasable Hinges
- Stake pockets
- Sealed Beam Lights
- 30,000 lb. capacity recessed GN Ball
- Receiver Type Bumper Hitch w/ D-rings
- Mud Flaps
- Lighted License Plate Mount
- 7-Pin Truck Plug
- Headache rack lights
- Wiring Harness
 |
 |
|
Bradford Built 4-Box Utility Bed
Standard features include:
- POWDER COATED BLACK for a good shine and an easy-to-wash surface.
- 4" Flip-Down Sides on Greasable Hinges
- Sealed Beam Lights
- 30,000 lb. capacity GN Ball
- Receiver Type Bumper Hitch w/ D-rings
- Headache Rack W/ Lights
- Wiring Harness
- Mud Flaps
- Lighted License Plate Mount
- 7-Pin Truck Plug
- 4 Built-In Lockable Steel Tool Boxes
|
 |
|
Bradford Built Stepside Bed
Standard features include:
- POWDER COATED BLACK for a good shine and an easy-to-wash surface.
- Sealed Beam Lights
- 30,000 lb. capacity Gooseneck Ball
- Receiver Type Bumper Hitch w/ D-rings
- Headache Rack W/ Lights
- Wiring Harness
- Flush mounted Tie Rings
- Mud Flaps
- Lighted License Plate Mount
- 7-Pin Trailer Plug
- Black Steel Tool Boxes -14"T x 16"D x 24"W
|
 |
|
|
Hillsboro Aluminum Truck Bed
Standard features include:
- Corrosion Resistant
- Heavy Duty extruded rubrail
- 3/8" x 2" extruded aluminum tie rail with 4" extruded stake pockets
- Heavy duty Treadbrite aluminum tailboard with 3 1/2" extruded frame, 3 pair of sealed beam lights and dual tag lights
- Adjustable height, Full Vision, contoured Headache rack with heavy duty 3 1/2" extruded frame, .125 aluminum panel, 3/16" x 2" louvers and sealed beam lights
- 3" Steel channel long sills adjustable to 34", 38", or 42" outside spacing
- Gooseneck ball plate with flush mount cover (2 5/16" 30k ball included)
- (1) Fuel Filler kit
- Loomed wiring harness with plug-in connections
- Electrical accessory hookup on headache rack
|
 |
|
Hillsboro Steel Truck Bed
Standard features include:
- High quality PPG epoxy primer and polyurethane paint finish
- 3-inch channel headache rack frame
- 1/8-inch steel treadplate on 8 and 8.5-foot wide models
- 14-gauge steel floor plate on 7- and 7.5-foot wide models
- Recessed mounting hitch plate with hinged lid
- Three-inch structural channel long sills adjustable from 34-42 inches
- 4-inch formed channel crossmembers
- Stake pockets with tie rail
- Sealed beam lights
- Dual tag lights
- 2-year warranty
|
 |
|
Hillsboro GII Steel Truck Bed
Standard features include:
- Two-year warranty
- Epoxy primer
- Black polyurethane paint
- Louvered headache rack w/ sealed beam lights
- 1/8-inch steel treadplate floor
- Mounting plate with 26K ball & flush mount lid
- 5" structural long sills
- 2 1/2" crossmembers
- Sealed beam lights (6) stop, turn & tail and (4) back-up
- Sealed beam I.D. lights in rear of bed
- Dual tag lights
- Inboard stake pockets
- 6" fold-down sides w/ multiple tie locations
- Sides have greasable hinges, slam latch & rubber bump stop
- Rear tailboard with receiver hitch
- Board holders across front and back of bed
- Hillsboro mudflaps
- Enclosed wiring harness
- 7 wire trailer socket
|
 |
